Úvod » KVANT LASERS » KVANT Spectrum 37 RYGB

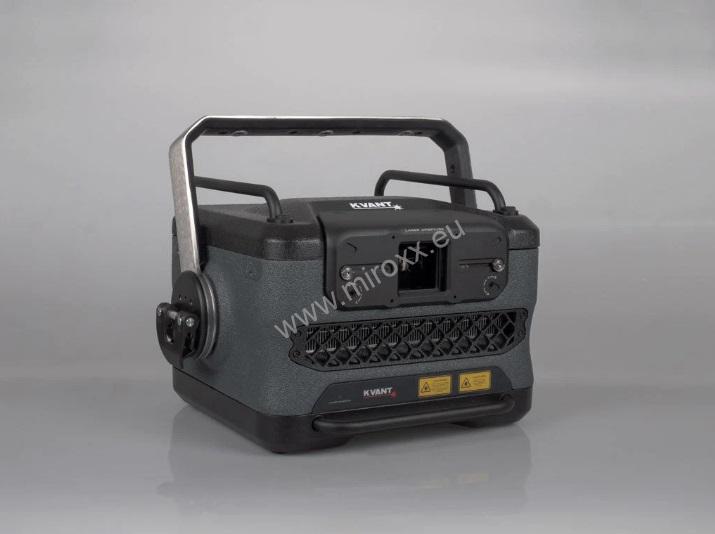

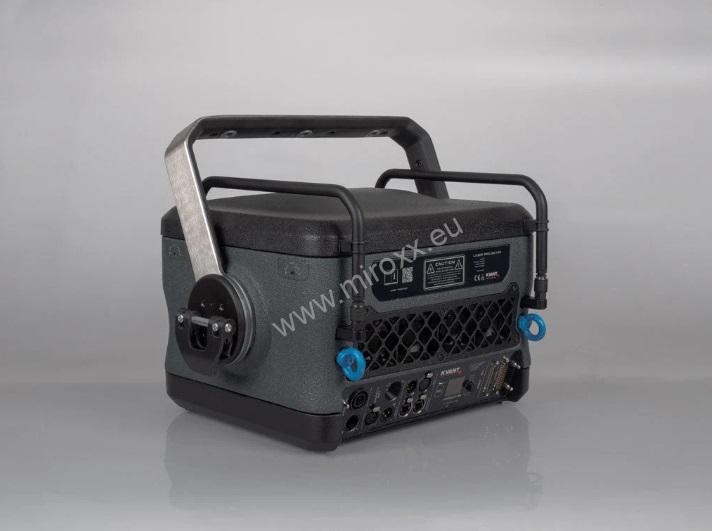

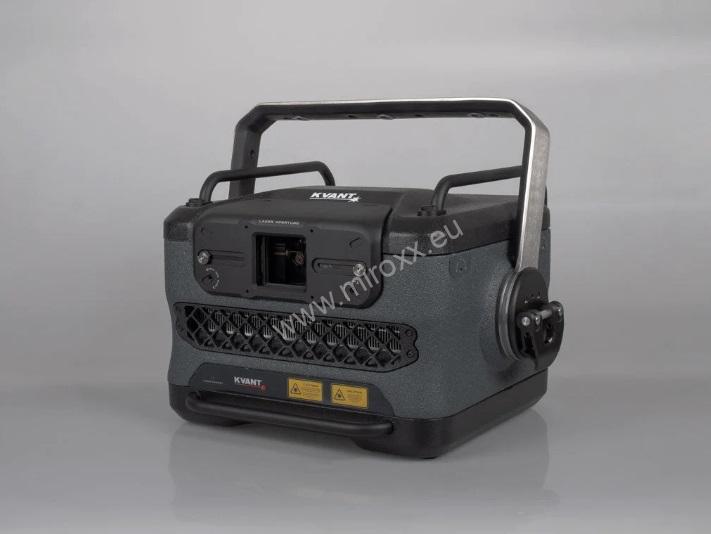

KVANT Spectrum 37 RYGB

Top of the range 37-Watt OPSL-based full-colour laser projector.

Na objednávku



novinka doprava zdarma

Číslo produktu: Price on request
Source / Type: Semiconductor laser diode + OPSL | Full-colour RYGB laser projector
Suitability: 0utdoor laser displays [atmospheric, abstract, text, animations]
System control: FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]
Compliant with: EN 60825-1 [tested by TÜV SÜD], FDA
Size [WxHxD, mm]: 491 x 310 x 396 [Technical Drawings are in the SUPPORT section of this page]
Guaranteed optical output /W/: 34.36
R | G | B [W]:: 7 | 5 | 14 | 11 [*note]
Wavelengths [nm, ±5nm]: 637 | 577 OPSL | 525 [optional 532 OPSL] | 462+445
Beam size: 6 x 6
Beam divergence (mRad): <0.7 mrad [full angle, averaged value, *see note B below]
X-Y scanners: Juno 5 | 40 Kpps @ 8°, max. scanning angle 60° on both axes [more options in UPGRADES section]
Max. power consumption [VA]: 1200
Included in the set: Heavy-duty flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector[for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creat
HW features: All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protec
Note A: Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
Note B: The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal an
naša cena bez DPH : 0,00 EUR
naša cena s DPH (20 %):
0,00 EUR

do košíka:
  ks
Strážny pes

Spectrum 37 RYGB

The latest Spectrum series is the ultimate result of our know-how merged with the latest laser technology and the wishes of laser display professionals worldwide.

Beautifully and practically designed Spectrum laser projectors offer world-class performance, superb beam quality, a wide range of colours, inspiring features to help you succeed, and comprehensive control options for easy integration into existing systems.

The Spectrum is offered in three versions - 34-Watt ROGB, 37-Watt RYGB, and 55-Watt RYGB fitted with either extra Orange or Yellow OPSL module.
Due to our latest breakthroughs in beam-shaping techniques, all these models produce an enormous amount of luminosity, meaning they are seriously bright!

In addition, the rigid foam aluminium chassis with cushioned heatsink, advanced thermal management and ergonomics make working with Spectrums stressless, exciting and fun.

With the latest Spectrum, you can sit back, relax and focus on your creativity.

The latest Spectrum chassis is 30% lighter, significantly smaller and more robust than its predecessor and most conventional projectors in its class.

Utilised by default, the 577nm Yellow OPSL module provide a wide range of colours and high luminosity and brightness of the system over long projection distances. Furthermore, the default 525nm green can be replaced with 532nm OPSL for even finer and brighter beams.

The beam profile of each colour is near round, and all beams perfectly match each other in shape, size and divergence, ensuring all the mixed colours are crisp clean without any halos around them.

NÁZORY A OTÁZKY NÁVŠTEVNÍKOV

Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý.

Weight: 31
Modulation: 100 | analogue
Power requirements: 100-240/50-60Hz | Neutrik powerCON TRUE1
Operation temperature: 10-35, or -20 to 40 when installed in the Monsoon outdoor enclosure

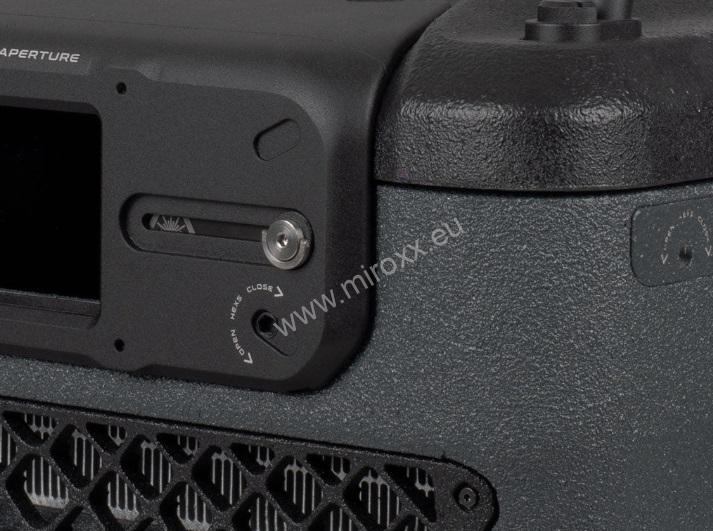

Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
