Úvod » KVANT LASERS » KVANT LogoLas 24

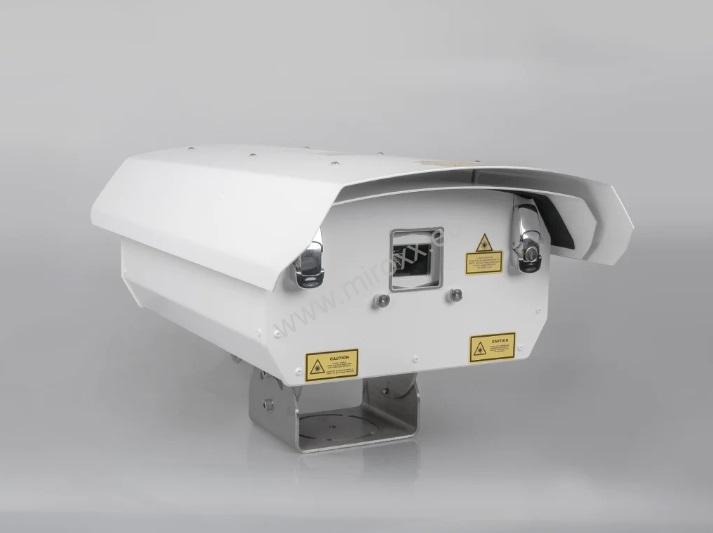

KVANT LogoLas 24

24-Watt green OPSL outdoor laser display system suitable for Architecture and Signage.

Na objednávku


novinka doprava zdarma

Číslo produktu: Price incl. VAT
Source / Type: Semiconductor laser diode | Full-colour RGB laser projector
Suitability: Permanent indoor / outdoor installations
System control: FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]
Compliant with: EN 60825 - IP65 certified
Size [WxHxD, mm]: 377 x 447 x 726 [WxHxD] [Technical Drawings are in the SUPPORT section of this page]
Guaranteed optical output /W/: 10
R | G | B [W]:: 6 | 8 | 10 [*see note A below]
Wavelengths [nm, ±5nm]: 638 | 525 | 455
Beam size: 5 x 7
Beam divergence (mRad): <1.1 [full angle, averaged value, *see note B below]
X-Y scanners: 30 Kpps @ 8° [more options in UPGRADES] or without scanners, fitted with the Beam Expander
Max. power consumption [VA]: 1200

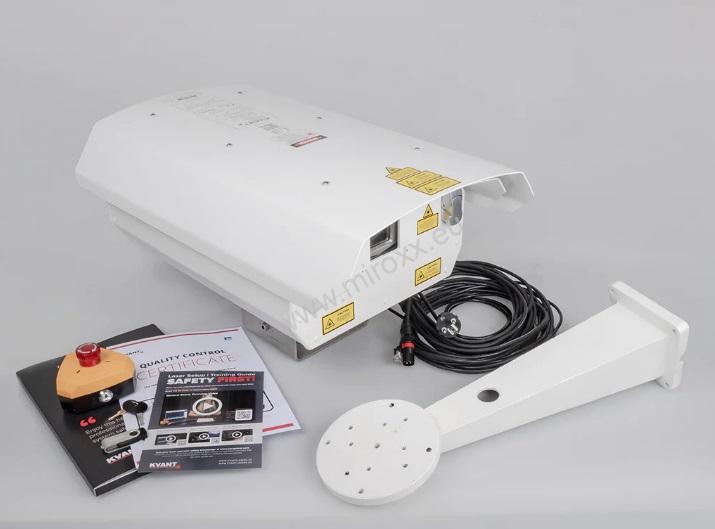

Included in the set: LogoLas laser system, flat surface bracket and wall mount bracket with fixings, 5M power lead, 5M Ethernet rj45 signal cable, E-STOP remote with 5M 3-pin XLR cable, set of 2 keys for the lid and 2 E-STOP keys, interlock bypass dongle [supplied for the USA
HW features: All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection.
Note A: Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
Note B: The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal an
naša cena bez DPH : 19 030,00 EUR
naša cena s DPH (20 %):
22 836,00 EUR

do košíka:
Strážny pes
LogoLas 24

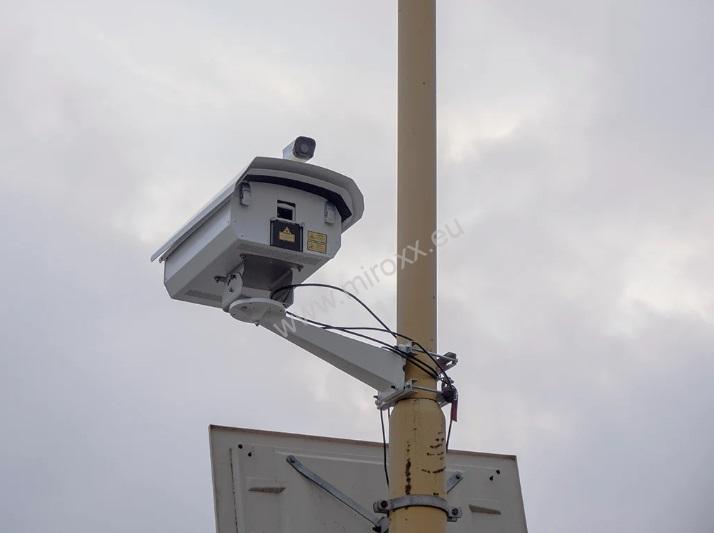

The new 24-Watt RGB full-colour high-power LogoLas is a professional laser display system built into an industrial-grade housing, developed for outdoor laser advertising, high visibility signage, facade illumination and crowd flow management applications.
With its inbuilt control interface and IP rated robust build, it is a comprehensive solution for permanent installations at demanding environments.

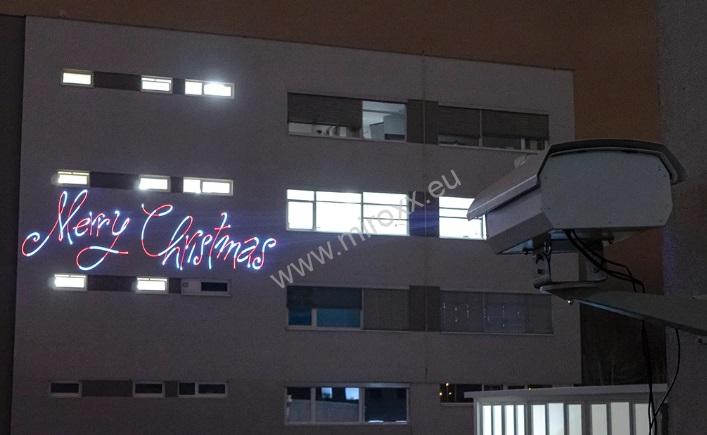

Great for permanent outdoor laser advertising, high visibility signage, facade illumination and crowd flow management applications.


Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý.

Weight: 21
Modulation: 100 | analogue
Power requirements: 100-230/50-60Hz | Neutrik powerCON TRUE1
Operation temperature: 0-40 [currently being tested in the range -20 to +40 degrees]

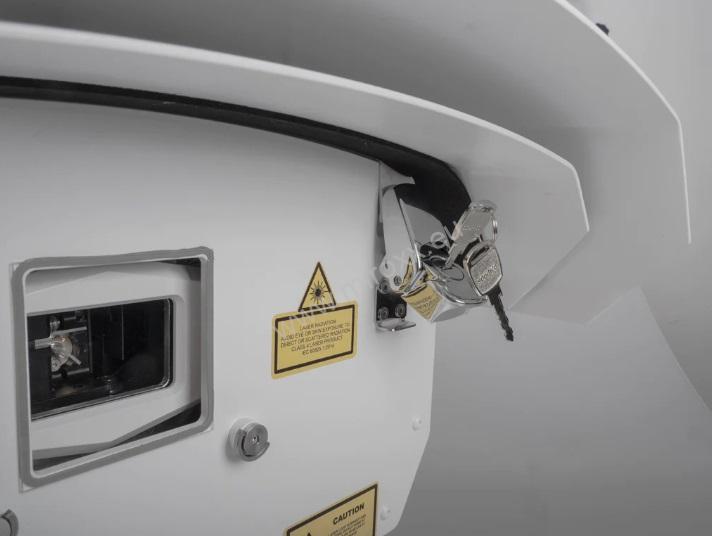

Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
