Úvod » KVANT LASERS » KVANT LogoLas 10





KVANT LogoLas 10


10 Watt full-colour RGB outdoor laser display system suitable for Architecture and Signage.


































Na objednávku













                novinka
                    doprava zdarma













                      Číslo produktu:

                            Price incl. VAT






                        Source / Type:


                                    Semiconductor laser diode | Full-colour RGB laser projector






                        Suitability:


                                    Permanent indoor / outdoor installations






                        System control:


                                    FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]






                        Compliant with:


                                    EN 60825 - IP65 certified






                        Size [WxHxD, mm]:


                                    377 x 447 x 726 [WxHxD] [Technical Drawings are in the SUPPORT section of this page]






                        Guaranteed optical output /W/:


                                    10






                        R | G | B [W]::


                                    2.7 | 3.5 | 4.5 [*see note A below]






                        Wavelengths [nm, ±5nm]:


                                    637 | 520 | 445






                        Beam size:


                                    5 x 4.5






                        Beam divergence (mRad):


                                    0.9 [full angle, averaged value, *see note B below]






                        X-Y scanners:


                                    ScannerMAX 506 Compact | 40 Kpps @ 8° [more options in UPGRADES section of this page]






                        Max. power consumption [VA]:


                                    340






                        Included in the set:


                                    LogoLas laser system, flat surface bracket and wall mount bracket with fixings, 5M power lead, 5M Ethernet rj45 signal cable, E-STOP remote with 5M 3-pin XLR cable, set of 2 keys for the lid and 2 E-STOP keys, interlock bypass dongle [supplied for the USA






                        HW features:


                                    All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection.






                        Note A:


                                    Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.






                        Note B:


                                    The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal an







                        naša cena bez DPH                          :



      11 925,00 EUR






                        naša cena s DPH (20 %):





        14 310,00 EUR












do košíka:





        ks





Strážny pes




































LogoLas 10

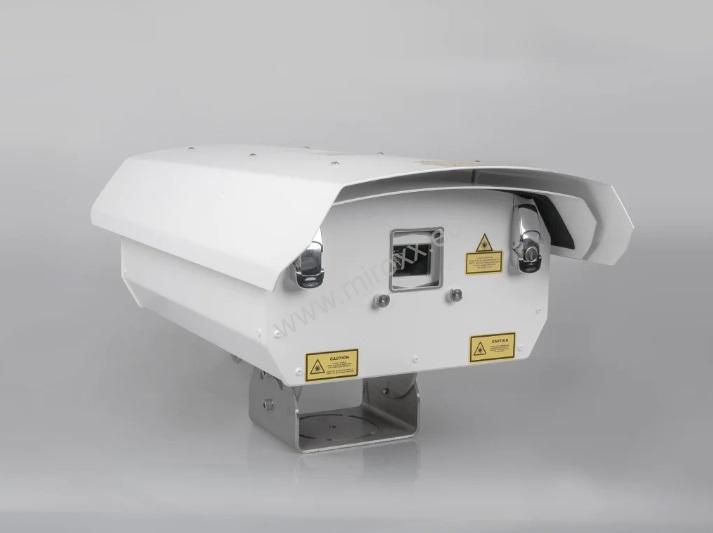

The 10 Watt RGB full-colour LogoLas is a professional laser display system built into an industrial-grade housing, developed for outdoor laser advertising, high visibility signage, facade illumination and crowd flow management applications.
With its inbuilt control interface and IP rated robust build, it is a comprehensive solution for permanent installations at demanding environments.

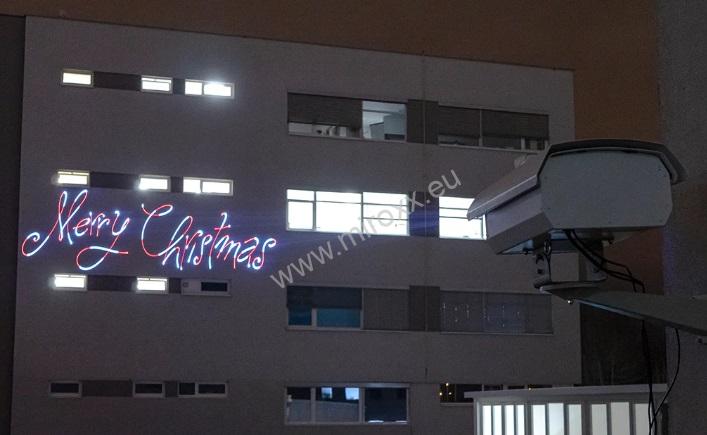

Great for permanent outdoor laser advertising, high visibility signage, facade illumination and crowd flow management applications.












NÁZORY A OTÁZKY NÁVŠTEVNÍKOV




Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý.



















          Weight:

                          21






          Modulation:

                          100 | analogue






          Power requirements:

                          100-230/50-60Hz | Neutrik powerCON TRUE1






          Operation temperature:

                          0-40 [currently being tested in the range -20 to +40 degrees]






          Laser safety features:

                          Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
