Úvod » KVANT LASERS » KVANT EPIC 170




KVANT EPIC 170

For all those epic shows and unforgettable moments - KVANT brings you the Epic!

Na objednávku



novinka

Číslo produktu: Price on request
Scanning system: Juno 5 | 20 Kpps @ 8°, max. scanning angle 40° on both axes
Size: 500 x 315 x 876 [Technical Drawings are in the SUPPORT section of this page]
Guaranteed optical output: 170 Watts
Beam size: 10 x 12
System control: FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]
Beam divergence (full angle): 1.1 mrad [full angle, **note]
Source / Type: Semiconductor laser diode [FAC] | Full-colour laser projector
Suitability: Outdoor laser displays [atmospheric, abstract, simple graphics]
Compliant with: EN 60825-1
Red - Green - Blue: 30 | 60 | 80 [*note]
Center wavelength tolerance (± 5 nm): 638 | 525 | 455
Maximum power consumption /VA/: 1800
Included in the set: Plywood flight case, 5M power lead, 25M Ethernet rj45 signal cable, E-STOP remote with 30M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation
HW features: All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection. Colour Balance display
*note: Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
**note: The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and
naša cena bez DPH : 0,00 EUR
naša cena s DPH (20 %):
0,00 EUR

do košíka:
  ks
Strážny pes

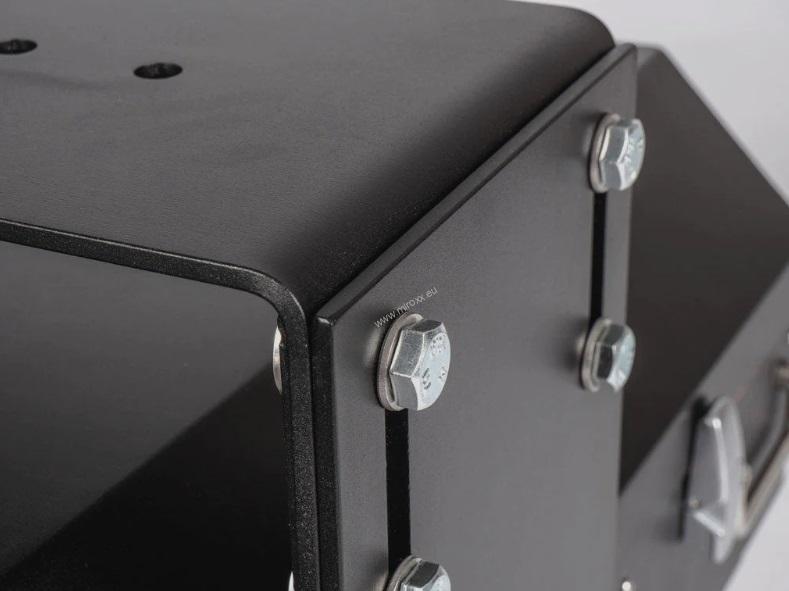

KVANT Epic systems are our new laser projectors with super-charged power output. The three projectors in the range offer 100-Watt, 170-Watt and 270 Watts full-colour output with scanners capable of atmospheric, abstract and basic graphic effects. The Epic is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.

And because we understand that the internal colour alignment of RGB modules can be an issue when lasers are permanently installed far from reach, we fitted Epic models with Motorised Dichroic Filters as default, making that otherwise fiddly procedure an effortless task.

NÁZORY A OTÁZKY NÁVŠTEVNÍKOV

Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý.

Scanning system: Juno 5 | 20 Kpps @ 8°, max. scanning angle 40° on both axes
Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
Modulation: 100 | analogue
Power requirements: 100-240/50-60Hz | Neutrik powerCON TRUE1
Operation temperature: 10-35
Ingress protection rating: IP65 with the optional Rain Cover installed [certification in progress]
Weight: 89
