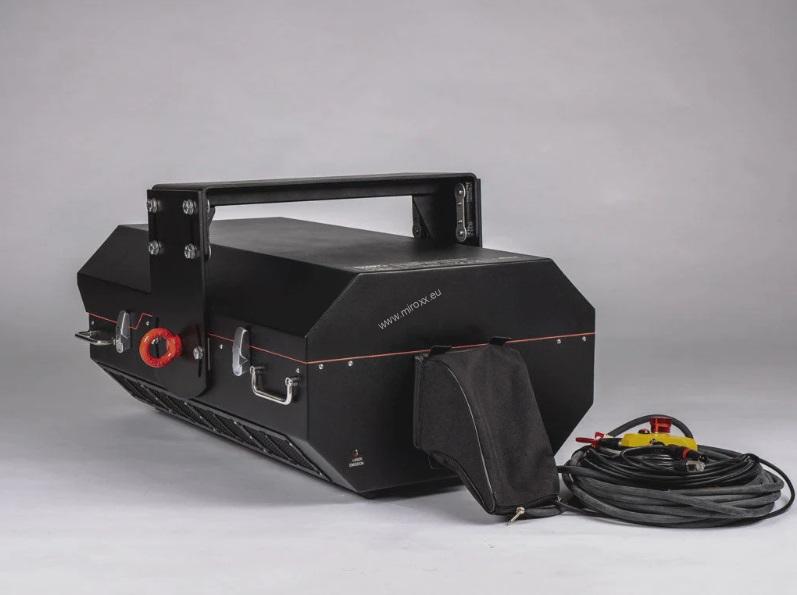

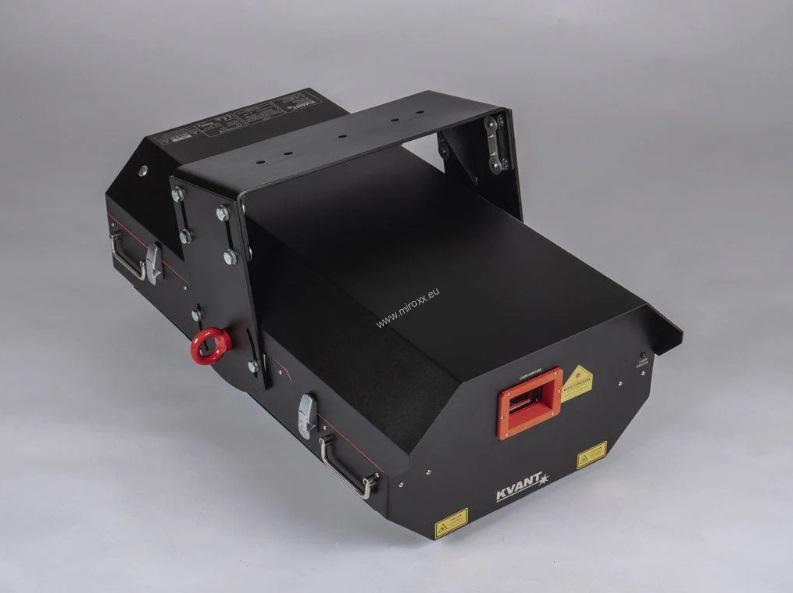

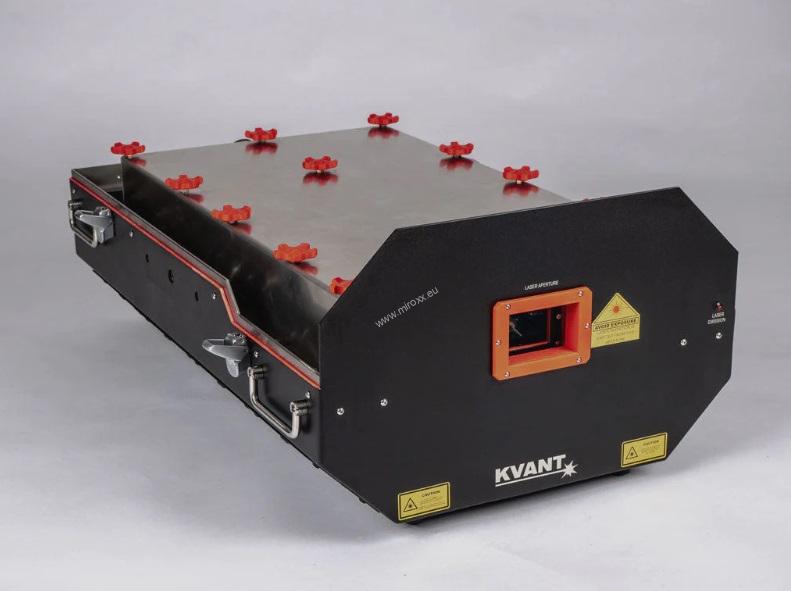

KVANT Epic systems are our new laser projectors with super-charged power output. The three projectors in the range offer 100-Watt, 170-Watt and 270 Watts full-colour output with scanners capable of atmospheric, abstract and basic graphic effects. The Epic is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.
And because we understand that the internal colour alignment of RGB modules can be an issue when lasers are permanently installed far from reach, we fitted Epic models with Motorised Dichroic Filters as default, making that otherwise fiddly procedure an effortless task.
|Scanning system:||Juno 5 | 20 Kpps @ 8°, max. scanning angle 40° on both axes|
|Laser safety features:||Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.|
|Modulation:||100 | analogue|
|Power requirements:||100-240/50-60Hz | Neutrik powerCON TRUE1|
|Ingress protection rating:||IP65 with the optional Rain Cover installed [certification in progress]|
