KVANT Burstberry Cluster

Compact in size, being a fully equipped 2W full-colour RGB laser display system with build-in burst effect and 3W white LED blinder - that’s Kvant Burstberry.

Na objednávku



doprava zdarma

Číslo produktu: Price incl. VAT
Guaranteed optical output: 12 W
Beam size: 5.2 x 5.5
System control: FB4-STD [Ethernet, ArtNet | PC, Lighting Console or Autoplay]
Beam divergence (full angle): 0.7 [full angle, averaged value, *see note B below]
Source / Type: Semiconductor laser diode | Full-colour RGB laser projector/Lighting fixture
Suitability: indoor/outdoor laser displays [atmospheric, abstract, text, animations]
Compliant with: EN 60825-1 [tested by TÜV SÜD], FDA
Size [WxHxD, mm]: approx. 520 x 350x 359 [Technical Drawings are in the SUPPORT section of this page]
Maximum power consumption /VA/: 340 [each sub-unit]

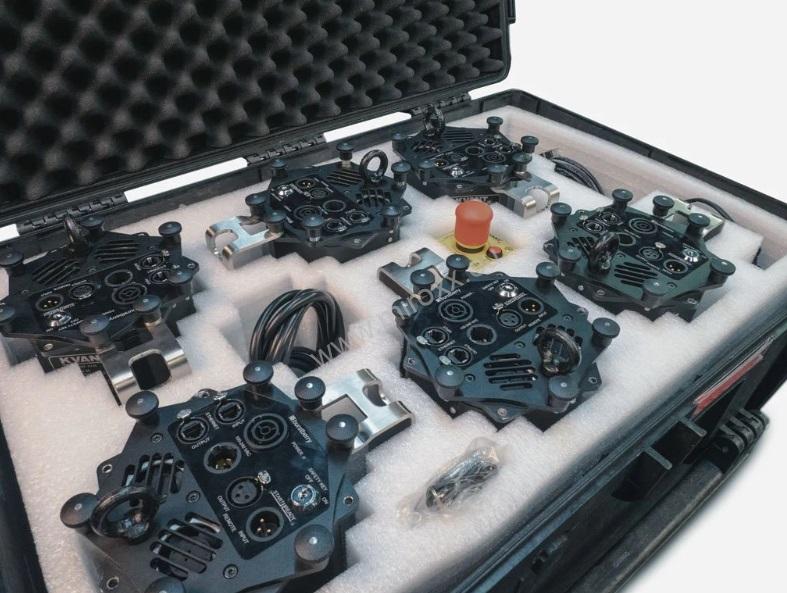

Included in the set: 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is availab
HW features: All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection. Star-burst laser effec
R | G | B [W]: 0.37 | 0.8 | 1.2 [*see note A below]
Wavelength: 637 | 525 | 445
X-Y scanners: ScannerMAX 506 Compact | 168 Kpps @ 8°, max. 60° [per 6-unit cluster]
Note A: Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
Note B: The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and
naša cena bez DPH : 29 463,00 EUR
naša cena s DPH (20 %):
35 355,60 EUR

do košíka:
  ks
Strážny pes

Burstberry Cluster

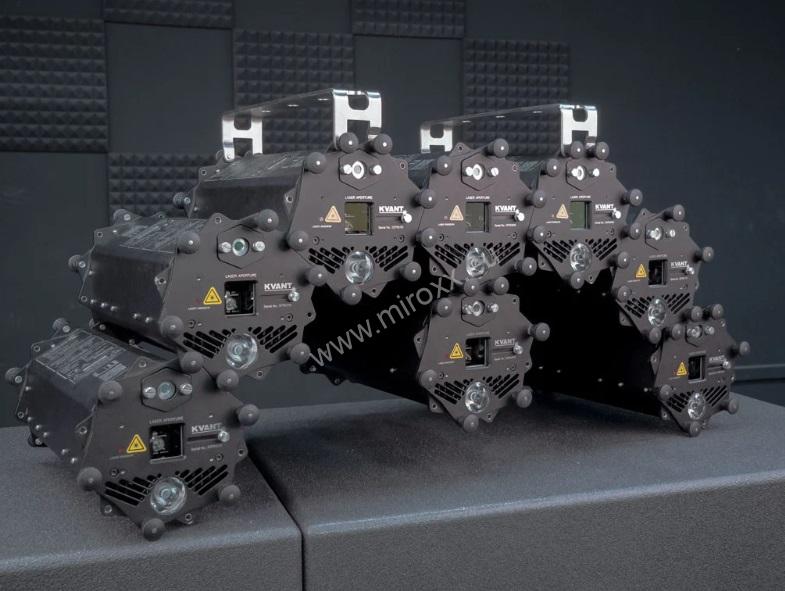

A pack made of six Burstberries offers more than 150.000 points-per-second drawing capability - that's at 8 degrees projection angle and 20 frames per second performed. And being virtually a single unit makes the handling extremely easy and practical because you don't have to worry about the misalignment between the projectors once they are set up - even if moved afterwards.

Just imagine what you could do with over 150.000 points per second; how complex the content could be with absolutely no flicker when projected. The Burstberry offers endless creative possibilities and easy control when designing challenging laser effects. Because it is intended to be operated mainly via Artnet or DMX, we see it ultimately as the product of choice for every lighting designer.

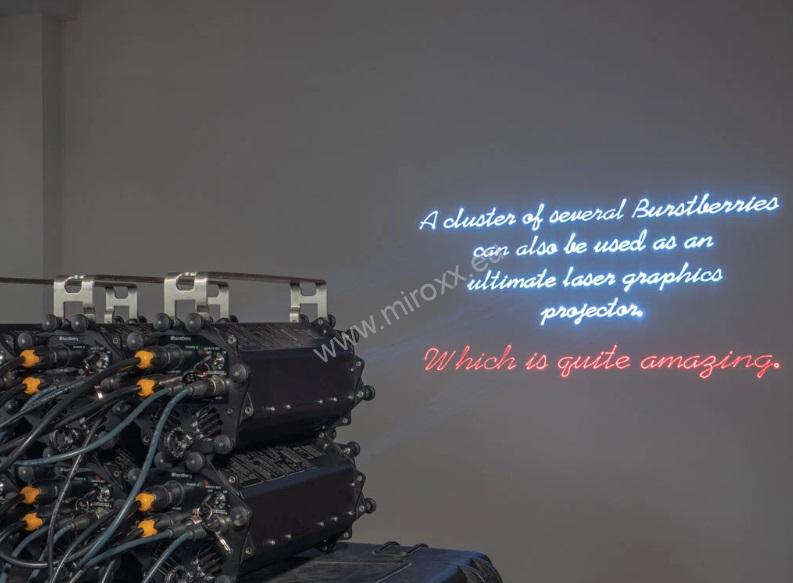

One of the key features that a cluster of Burstberries will give its user is phenomenal graphical performance.

NÁZORY A OTÁZKY NÁVŠTEVNÍKOV

Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý.

Weight:: 23 kg
Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
Modulation: 100 | analogue
Power requirements: 100-230/50-60Hz | Neutrik powerCON TRUE1
Operation temperature: 10-35
