Úvod » LASER ACCESSORIES » LASER DISPLAY SAFETY » E-STOP Splitter 8

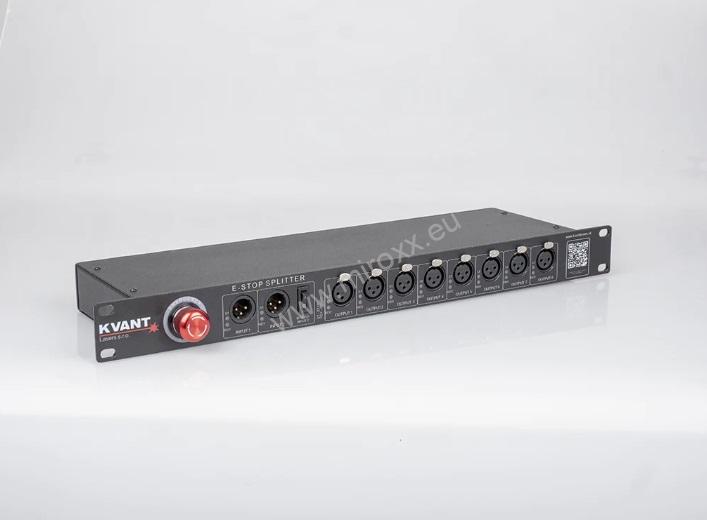

E-STOP Splitter 8

Every new Kvant laser display projector is delivered with a top-quality E-STOP system that fulfils all the safety features required by legislation. It allows you to control one or more projectors when connected in series.

Skladom



Size: 483 x 45 x 140 [WxHxD]
Housing colour: black
Inputs: 2x [3-pin XLR]
Outputs: 8x [3-pin XLR]
Max. control distance: Up to 1000 meters with a high-quality signal cable.
Required rack space: 1U
Outputs info: Optically isolated from each other, each output is ESD protected and is "power cross safe", each output can control an unlimited number of Kvant laser projectors.
naša cena bez DPH : 1 226,00 EUR
naša cena s DPH (20 %):
1 471,20 EUR

do košíka:
  ks
Strážny pes

E-STOP Splitter 8

Every new Kvant laser display projector is delivered with a top-quality E-STOP system that fulfils all the safety features required by legislation. It allows you to control one or more projectors when connected in series.

However, in some situations, you may need to control the E-STOP signal from various positions within the setup and/or manage more lasers that are split into multiple groups.

The new 8-output E-STOP splitter box offers so many ways how the E-STOP signal can be spread across all the Kvant lasers in a given setup.

The splitter box distributes the signal in a parallel way, making it possible to connect a virtually unlimited number of laser projectors and control them at once/or per group. Each splitter has two E-STOP remote inputs, which allows for two E-STOP remote positions (a.i. FOH and stage) per setup or sub-group.
E-STOP splitter gives you a virtually unlimited number of ways how the E-STOP signal can be routed.

NÁZORY A OTÁZKY NÁVŠTEVNÍKOV

Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý.

Power requirements: 100-230, 50Hz
Power Consumption: max. 20VA
Operation temperature: 0-40
Ingress protection rating: IP 20
Weight: 2
