This special laser effect creates fans of laser beams and can be controlled through DMX or runs in stand-alone or music mode.

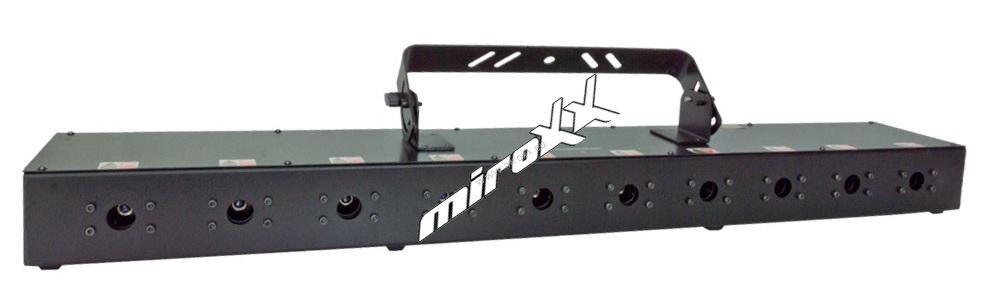

The BeamBar 10B-450 is a bar with 10 single beam laser outlets, each equipped with a royal blue laser diode >100mW/450nm.
Each laser beam can be individually aligned through a 4-point alignment system, that can easily be accessed from the front - so no opening of the housing is necessary.
The BeamBar 10B-450 can be controlled through 13 DMX channels, so each diode can be controlled individually. Thus it's possible to create many different chaser, beam or fan effects.
Due to the standard DMX compatibility, the BeamBar 10B-450 can easily be integrated into an existing lighting setup.
The BeamBar 10B-450 is a great effect for stages, live gigs and nightclubs, as well as for TV Shows and show productions.
|Total Power typical::||1 200mW|
|Minimum output power::||1 000mW|
|Power Blue:||10 x >100mW / 450nm|
|Beam Specifications (full angle)::||ca. 3mm/2mrad|
|Operation Modes::||DMX, Stand-alone, Sound-to-Light|
|Accessories::||Interlock connector, manual, key|
|Power Supply::||100V - 250V AC 50/60Hz|
|Power Consumption::||50 W|
|Dimensions::||1000 x 160 x 85 mm (l x w x h)|
