Moncha.NET Master /with Fiesta license/

Moncha. NET MASTER you can use in FIESTA software .

Thanks to small size, it is a perfect OEM controller even for low-cost laser show systems. It's working completely over Ethernet in real time, or it is even possible to control it over DMX or in stand-alone mode. We provide also additional board for Moncha.NET. It allows you to control your Moncha.NET using display and directional keys. It also saves lot of time and special boards for laser system producers - there is external ILDA, safety keyand X, Y invert integrated.

Main benefits

• Three ways to control: Ethernet, DMX, Stand-alone

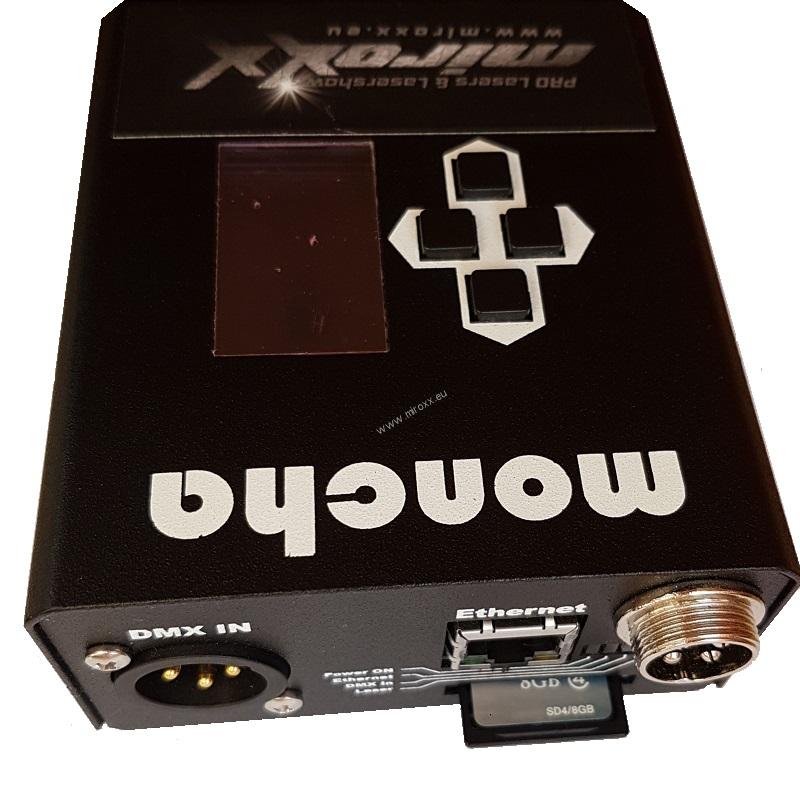

• Possibility to add special board with display: external ILDA, safety key support, X and Y invert integrated
• 40kpps maximal scan rate is good even for graphics shows
• Uses standard SD-card with size up to 32GB to store up to 254 complete laser shows
• You can use any SD-card reader to change the contents of card
• You can store up to 20 hours of laser show on one SD-card
• Laser safety - brightness map works also in DMX or Stand-alone mode
• Fades in brightness map
• Color optimization - color balance and fade curves on SD-card (works in DMX or Stand-alone mode)
• Remote control over Ethernet or even Internet (public IP address required) - upload frames and shows, configure stand-alone mode, configure brightness map and color optimization
• DMX 512 output

Control possibilities

1. Ethernet

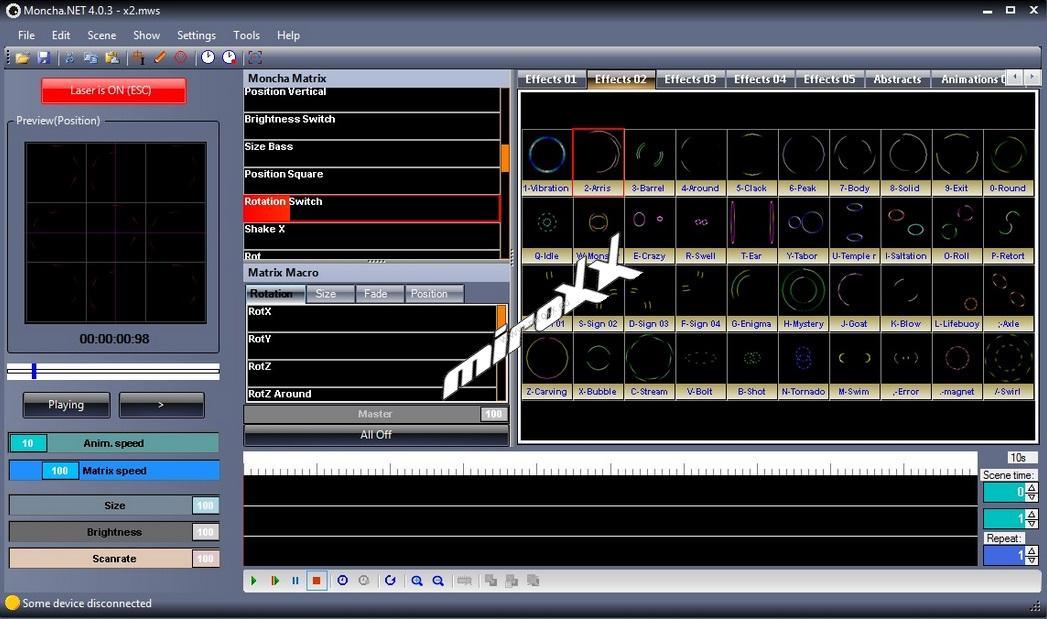

You can control Moncha.NET device in real time e.g. using Moncha.NET software. While you create graphics or shows, you'll be able to preview all your work on your laser system, even using wireless Wi-Fi signal.

You can also create laser show effects or complete laser shows and save them to Moncha.NET's SD-Card. Since SD-Card uses standard FAT32 file system, you can use any cheap card reader to do that.

But Moncha.NET comes with great possibility to upload animations or shows directly from software. Remotely you can also setup stand alone mode, define brightness map or control color balance and color fade curves.

In Ethernet mode Moncha.NET allows you to control also DMX devices.

2. DMX

You can store up to 254 different animations or even complete laser shows on your SD-Card. Using DMX you can switch among the animations. You can also set all the required properties of drawing - size, position, rotation, brightness, scan-rate, animation speed, color, ...

Since you can use SD-Card with size up to 32GB, it's no problem to store up to 20 hours of high quality laser show on one card.

3. Stand-alone (auto play)

Moncha.NET allows you to use it without any computer or DMX controller. It's perfect especially for advertisement or some other special applications, where no computer is required.

It is possible to define file to play using DIP switch or even using special text file stored on the SD-Card. This allows you to play files remotely, which is perfect feature especially for laser advertisement. Using Ethernet upload feature you can also change stored shows and animations.

Laser safety

Complete feature list

• Standard ILDA output
• 16 bit X and Y axes
• 4x 8bit color output
• Maximal scan rate 40000pps
• DMX 512 output
• DMX 512 input
• 100MBit Ethernet
• DIP switch (for IP/DMX address or setting stand-alone file to play)
• Additional board with control display, external ILDA, safety key, X and Y invert support
• 3 control modes: Ethernet, DMX, stand-alone
• Standard SD-card, FAT 32 file system up to 32 GB size
• Up to 254 different animations, effects or complete shows can be stored on SD-card
• 17 DMX channels used to control: position (16bit), size, rotation (16bit), brightness, color, animation speed, animation direction, scan-rate
• Remotely controllable over Ethernet or Internet with public IP address (real-time drawing, upload frames/shows, change color optimization settings, change brightness map, control stand-alone mode, ...)

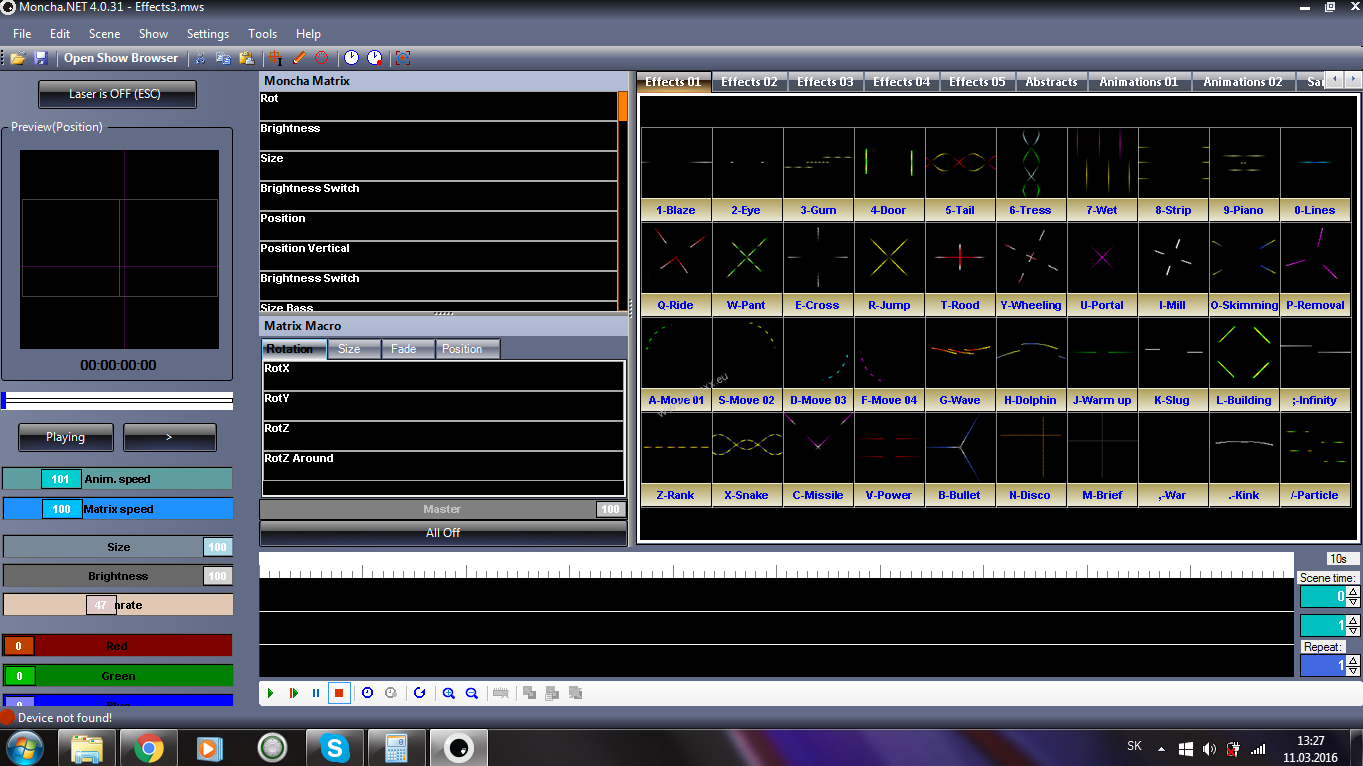

Show created in FIESTA software:
